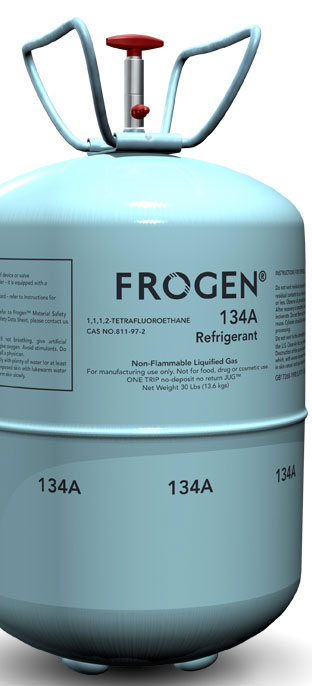

Frogen® R-134a has been developed by Frogen® Ltd. to serve as one of the key substitutes for CFCs and HCFCs. Frogen® R-134a is a long-term, environmentally safer, non-ozone depleting substitute. As a refrigerant, it possesses similar energy efficiency and capacity characteristics as Frogen® R-12 and has an intrinsically low toxicity. Frogen® R-134a is the alternative refrigerant of choice in automobile air-conditioning. It may be used in residential and commercial refrigeration, as well as commercial, and industrial air-conditioning.
ASHREA # |
R-134A |
CAS Registry Number |
6 |
Class |
HFC |
Refrigerant Type |
Single component fluid |
Lubrication |
POE or PAG (for auto A/C only) |
Charging Notes |
Can be done either as a vapor or a liquid. End-users should check with their equipment manufacturers guidelines for specific charging instructions. |
Usage Notes |
Similar thermodynamic properties to R12. Existing R12 equipment can be retrofitted with R134a |
ASHRAE Safety Group |
A1 |
Occupational Exposure Limits (8 hr. time/wt. Avg.) (ppm) |
1000 |
Chemical Name |
1,1,1,2-Tetrafluoroethane |
Chemical Formula |
CH2FCF3 |
Form |
Liquefied Gas |
Odor |
Colourless |
Color |
Weak |
pH |
Neutral |
Water Solubility (g/l) |
1.5 |
Average Molecular Weight (g/mol) |
102 |
Melting Point (°C) |
-101 |
Normal Boiling Point (NBP) (°C) |
-26.2 |
Latent Heat of Vaporization @ NBP (BTU/lb) |
-89.4 |
Critical Temperature (°C) |
213.9 |
Critical Pressure (psia) |
588.8 |
Vapor Pressure |
5,915 hPa at 21.1 °C |
Density |
1.2 |
Density of Saturated Vapour @ NBP (lb/ft³) |
0.33 |
Density of Saturated Liquid @ 25°C (lb/ft³) |
75.3 |
Specific Heat of Saturated Vapour @ NPB (BTU/lb °C) |
0.19 |
Specific Heat of Saturated Liquid @ 25°C (BTU/lb °C) |
0.34 |
Global Warming Potential (GWP) |
1437 |
Disposable Cylinders (Per Cylinder) |
11.3 |
Ton Tanks (Per Drum or Torpedo) |
1000 |
ISO Tankers (ISO Tank Container, Kg) |
20000 |
High Pressure Packaging Low Pressure Packaging Bulk Packaging
