AGEM to deliver the best quality products to our customers through "State of art facility" equipped with latest technologies and analysis carried out using variety of GC's and analyzers.
We are specialized in gases manufacturing fora diverse range of gas and liquid mixtures, producing high quality standards for calibration gases required for your laboratory and process quality control. Our products consist of single component to multi components of gas or liquid mixtures; to provide you with accurate, precise and consistent blend standard to meet your needs along with specifications, preparation tolerance, certification accuracy and traceability to NIST.
Mixture Grade |
Blend Technique |
Blend Tolerance |
Certification Accuracy |
|
Primary Standard |
Gravimetric |
5% - 50% |
+/-1% |
1% or 0.02% absolute |
500 ppm <5% |
+/-2% |
|||
1ppm < 500ppm |
+/-5% |
|||
Secondary Standard |
Gravimetric |
5% - 50% |
+/-2% |
50 ppm - 50% : +/-2% 1 ppm < 50ppm : +/-5% |
500 ppm <5% |
+/-5% |
|||
1ppm < 500ppm |
+/-20% |
|||
Cylinder |
Nominal Dimensions |
MOC |
Tare Weight (kg) |
Max Working Pressure(psi) |
|
Diameter (mm) |
Length (mm) |
||||
108 L |
368 |
1088 |
Steel |
38 |
480 |
50 L |
229 |
1510 |
Steel |
67.6 |
3000 |
47 L |
232 |
1375 |
Steel |
52 |
2175 |
40 L |
232 |
1180 |
Steel |
46 |
2175 |
108 L |
368 |
1088 |
Steel |
38 |
480 |
10 L |
178 |
570 |
Steel |
15.5 |
2015 |
48 L |
250 |
1348 |
Aluminum |
38.5 |
2175 |
30 L |
229 |
1150 |
Aluminum |
35.7 |
2175 |
10 L |
175 |
584 |
Aluminum |
9.4d |
2175 |

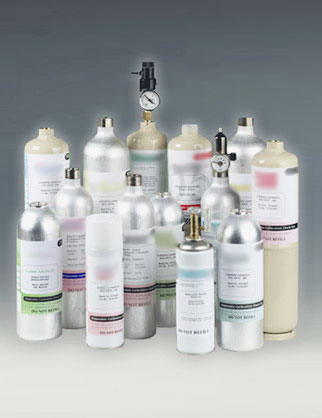

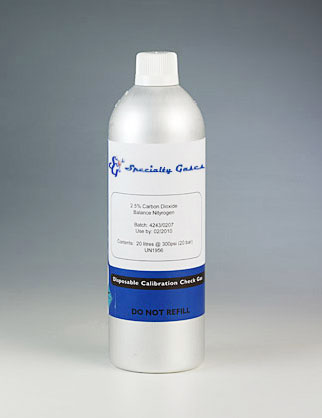

At AGEM we offer a cost-effective Aluminium disposable calibration & Pure Gases gas cylinder, for low calibration gas volume applications.Our mixtures are NIST traceable to guarantee the accuracy, optimum stability and maximum shelf-life of these calibration gas mixtures.
In AGEM we blend many different types of mixtures in disposable cylinders for use of checking and calibrating the function of detectors and instruments used in following applications:
High Pressure Packaging Low Pressure Packaging Bulk Packaging
